    SFL100 Drone Detection Jamming System 5km Range IP66 Rated

    SFL100 | Multi-Layered Drone Detection & Jamming System for 5km C-UAS Protection
    System Overview

    The SFL100 is an advanced counter-drone system providing comprehensive protection through RF detection, protocol analysis, and precision jamming capabilities. This integrated solution offers layered defense against unauthorized UAV threats.

    Key Features
    • 5km detection range with full-band RF scanning (400MHz-6GHz)
    • Simultaneous tracking of up to 100 drones
    • Intelligent jamming strategies tailored to drone type and distance
    • Disrupts control, video, and GNSS signals up to 3km
    • Supports over 400 commercial and custom drone models
    • Locates both drone and pilot positions within 3km
    • Rugged IP66-rated housing for harsh environments
    • Operates in extreme temperatures (-40°C to +60°C)
    Technical Specifications
    AttributeValue
    Communication ProtocolTCP/IP
    RangeUp To 5km
    Weather ResistanceIP66 Rated
    Detection ModesContinuous Wave, Pulse Doppler
    Weight25 kg
    Target SizeSmall drones (up to 1m)
    Tracking CapabilityTracks Up To 100 Drones Simultaneously
    Operation Temperature-40-60°C
    Consumption≤1000W
    Detection AccuracyWithin 1 meter
    Target DetectionSmall Drones
    SpecificationKu Band
    Communication InterfaceEthernet
    InstallationWall-mounted or tripod-mounted
    Detection MethodPulse Doppler
    Operational Capabilities

    The SFL100 system delivers scalable, adaptive protection for critical infrastructure, public venues, and border security applications. Its flexible deployment options support fixed-site, mobile, and rapid-deployment scenarios while maintaining operational effectiveness on-the-move.

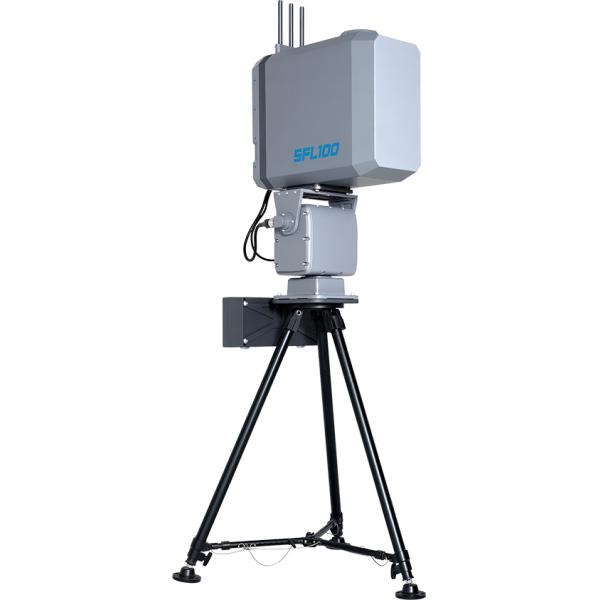

    SFL100 Drone Detection and Jamming System operational view SFL100 System components and installation options
